Single-Mode vs. Multimode Fiber: Choosing the Right Backbone for Your Facility
When it's time to run a fiber backbone — between floors, between buildings, or from the core switch to the far end of a plant — you hit a decision that shapes your network for the next two decades: single-mode or multimode?
The two look nearly identical on the reel. The difference is in the glass, and it determines how far your signal can travel, how much your electronics cost, and — most importantly — whether the fiber you install today will still be fast enough in fifteen years. Here's how to choose well.
The Physical Difference

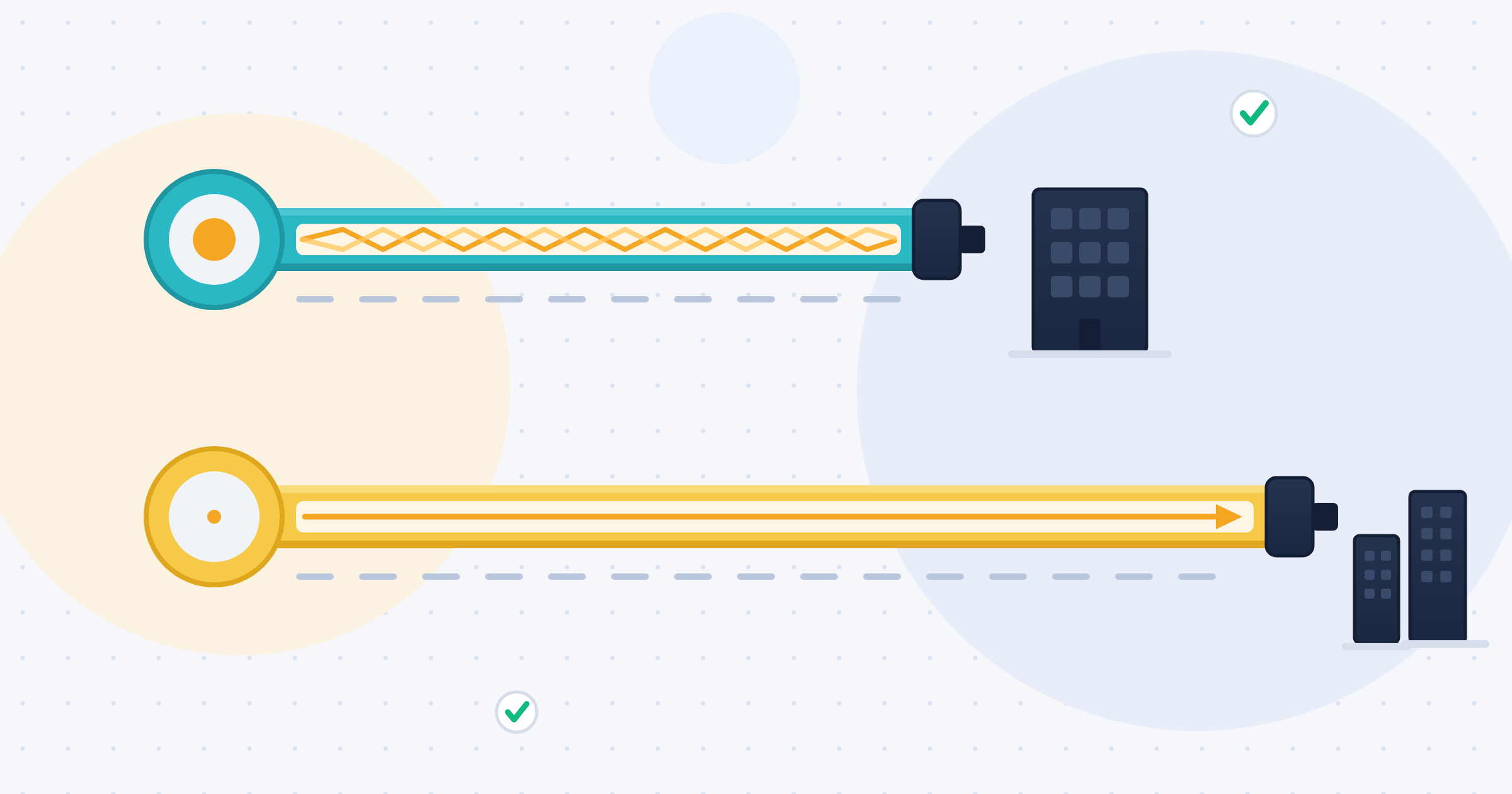

The distinction comes down to the size of the fiber's core — the glass channel the light actually travels through.
Multimode fiber has a relatively large core (50 microns on modern cable), wide enough that light can bounce along multiple paths, or "modes," at once. That larger target means it can use inexpensive light sources — VCSELs firing at 850 nanometers — which keeps the electronics cheap. The tradeoff is distance: because the different modes arrive at slightly different times (an effect called modal dispersion), the signal smears out over distance, which limits how far multimode can reliably run.
Single-mode fiber has a tiny core, around 9 microns — so small that light travels essentially one straight path down the glass. That eliminates modal dispersion and lets the signal travel enormous distances, but it requires precision laser sources at 1310 or 1550 nanometers to launch light into that narrow core.
In short: multimode uses cheap optics over short distances; single-mode uses pricier optics over effectively unlimited distances.
Reading the Grades: OM and OS
You'll see fiber specified by grade, and the grade matters.
Multimode (OM): OM1 (legacy 62.5-micron, orange jacket) and OM2 are older and increasingly obsolete. Today's installations use OM3, OM4, or OM5 — all laser-optimized 50-micron fiber in aqua, violet, or lime-green jackets. Roughly speaking, OM3 carries 10 Gigabit to about 300 meters, OM4 pushes that to around 400 meters and handles 40 and 100 Gigabit better over shorter reaches, and OM5 adds wideband capability for carrying multiple wavelengths at once.
Single-mode (OS): OS1 is intended for indoor, tight-buffered use; OS2 is loose-tube, lower-loss cable built for the long outdoor and campus runs where attenuation matters. Single-mode's distance capability is measured in kilometers — far beyond anything a single building or most campuses will ever demand.
The Cost Tradeoff That Actually Drives the Decision
Here's the part that surprises people. The single-mode *cable itself* is often no more expensive than multimode — sometimes less. The historical reason to choose multimode was never the glass; it was the optics. Multimode transceivers, built around cheap VCSELs, have traditionally cost a fraction of the precision lasers single-mode requires.
But that gap has narrowed dramatically. Driven by the enormous volume of single-mode optics consumed by hyperscale data centers, single-mode transceiver prices have fallen steadily. The economic case that once made multimode the obvious default has weakened — and for backbone runs, many organizations now reach for single-mode specifically because of what it protects against.
The Future-Proofing Argument
This is the insight that should weigh heaviest. With single-mode fiber, the glass is never the bottleneck. When you're ready to jump from 10 Gigabit to 40, to 100, to 400, you change the transceivers on each end — the fiber in the wall stays exactly where it is. Single-mode has bandwidth headroom you will not exhaust in the practical life of the cable.
Multimode is different. Each OM grade has a ceiling, and it's possible to outrun the fiber you installed. An OM3 backbone that was generous a decade ago may cap the speeds and distances you can reach today, and the only fix is to pull new glass — the expensive, disruptive job fiber installation always is.
So the real question mirrors the one we ask about copper: on single-mode, you upgrade electronics; on multimode, you may eventually have to re-pull the fiber. That's the tradeoff you're really weighing.
When Multimode Still Makes Sense
Multimode is far from dead, and for the right job it's the smart, cost-effective choice:
Inside a single building — floor-to-floor risers and short horizontal backbones where distances stay well within multimode's reach
Data centers and equipment rooms with very high port counts, where the savings on optics across hundreds of connections genuinely adds up
Any run where the distances are short, the speeds are known, and the electronics cost dominates the budget
When to Specify Single-Mode
Single-mode earns its place when:
You're linking buildings across a campus, where inter-building distances exceed multimode's limits
The runs are long — across a large plant or between distant structures
You want to future-proof the backbone against bandwidth demands you can't yet predict
The fiber is going outside plant — direct-buried, in conduit between buildings, or aerial — where you're not going to want to re-pull it for any reason
Long-term capacity matters more than the upfront cost of the optics
A Note for Multi-Building Industrial Sites in the Carolinas and Georgia
The manufacturing and industrial sites we wire across South Carolina, North Carolina, and Georgia are classic mixed-backbone environments. A large plant is often several buildings spread across a site, and the distances between them run past what multimode can handle — which makes single-mode, typically OS2 loose-tube, the right choice for the campus backbone. Inside each building, multimode risers may still make good economic sense.
Outside-plant fiber between buildings brings its own requirements: the correct jacket and armoring for direct burial or aerial installation, protection against moisture and rodents, and proper grounding of any armor. Getting a signal across a campus reliably is as much about the cable's construction and how it's installed as it is about the glass inside.
Design, Splice, and Prove It
A fiber backbone lives or dies on the quality of its terminations and splices. A single bad fusion splice or a dirty connector endface can add loss that quietly starves your links of margin — and fiber faults are notoriously hard to chase down after the fact if you don't have a baseline.
That's why we design the backbone deliberately — deciding where single-mode and multimode each belong across your facility — fusion-splice and terminate to specification, and test every fiber we install. That means an insertion-loss measurement on every link, and an OTDR trace where the run warrants it, documenting each connector and splice along the path. You get a documented record of exactly what was installed and how it performs, backed by our 100% lifetime warranty.
The Bottom Line
Single-mode versus multimode isn't a question of which fiber is "better" — it's a question of matching the glass to the distances you need to cover and the future you want to protect against. Multimode saves money on optics over short, known runs. Single-mode buys you distance and a backbone whose capacity you'll upgrade with electronics rather than shovels.
Choose deliberately, install it right, and the fiber becomes the part of your network you never think about again — which is exactly what a backbone should be.
